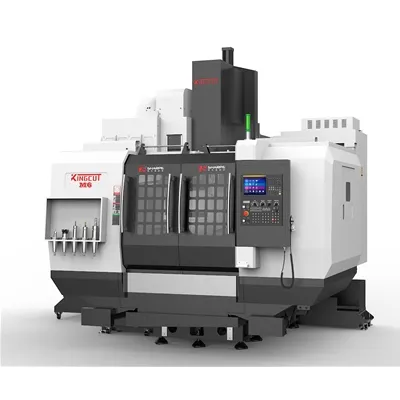

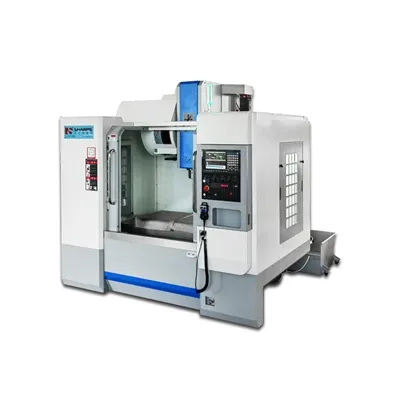

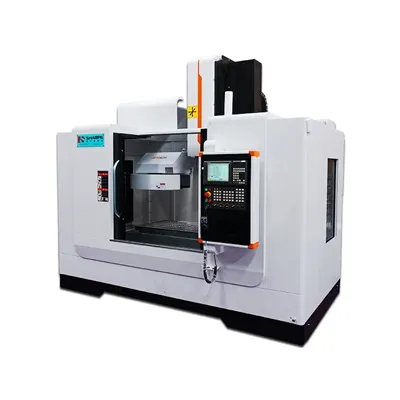

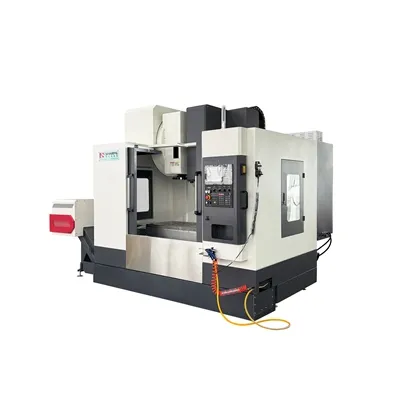

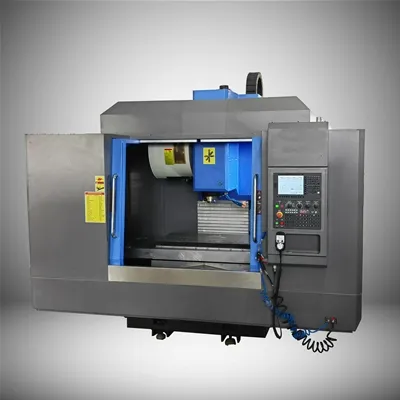

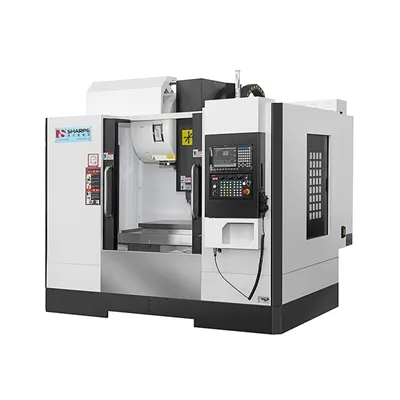

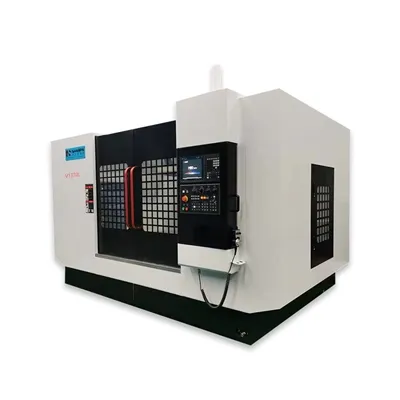

The 1165L is a heavy-duty vertical machining center engineered for aggressive material removal on large workpieces.
Technical specifications
| Item | Unit | Spec | |
|---|---|---|---|
| Spindle | 1 | pcs | DANQUAN (Taiwan) |
| Screw bearing | 6 | set | NSK / FAG / THK bearings |
| Ball screw | 3 | set | HIWIN |
| Coupling | 3 | set | Runde |
| Linear guideway | 3 | set | HIWIN |
| Tool Magazine | 1 | set | SFG (Taiwan) |
| System | 1 | set | Mitsubishi/Syntec |
| Motor | 4 | set | Mitsubishi/Syntec |
| Lubrication system | 1 | set | Hoval |
| Telescopic cover | 3 | set | Hongwang/Aipai'er |
Equipment
Standard equipment
- Bed — Cast Iron — Resin-sand casting (HT300)
- Bed — Lubrication Circuit — Hoval (Auto lubrication)
- Bed — Ball Screw — HIWIN (Taiwan)Ball screw (R40-12K5-FDC)
- Bed — Linear Guideway — HIWIN (Taiwan)Linear guideway (X,Y,Z: HGH45CA)
- Bed — Spindle — DANQUAN (Taiwan)Mechanical spindle (BT40(150)-12000rpm)
- Electrical — Feed-motor type — X,Yservo (3.9 kW AM18 18.6 N·m 4000 rpm)
- Electrical — Feed-motor type — Z-axis servo (braked) (5.9 kW AM28 28.4 N·m 4000 rpm)
- Electrical — Spindle motor — Servo spindle motor (7.5-11 kW/12000 rpm)
- System — CNC: Syntec (Taiwan) (22MA)
- Tool Change — Pneumatic tool changer — SFG (Taiwan) (BT40 24 tools)
- Appearance — Sheet-metal Enclosure — Full enclosure (Ivory + sky blue)
- Lubrication — Electric oiler — RGB electric oiler (Electric oiler)
- Lighting — Linear work lamp (LED)
- Service — Freight — out-of-province
- Service — Packing — Wooden-crate packing
- Service — Warranty — 2 years
- Service — Training — on-site
Optional equipment
- Accessories — Tool holders / collets — BT40-ER32 (10 pcs each)
- Accessories — Tool kit (1 pcs)
- Accessories — Tool rack (1 pcs)
- Accessories — Manual (1 set (incl. USB))
About this model
This Vertical Machining Center is manufactured by our partner factory in Dongguan, China, and supplied direct by CENNETIC with factory-direct pricing, a standard warranty and remote setup support. Specifications are representative and can be confirmed against your machining requirements before order.
