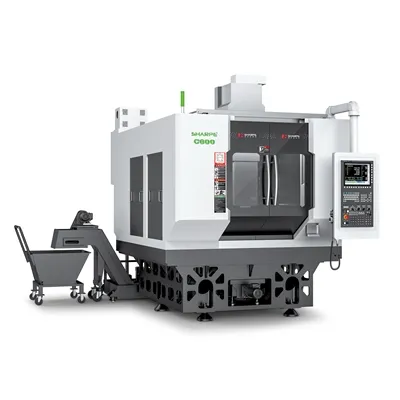

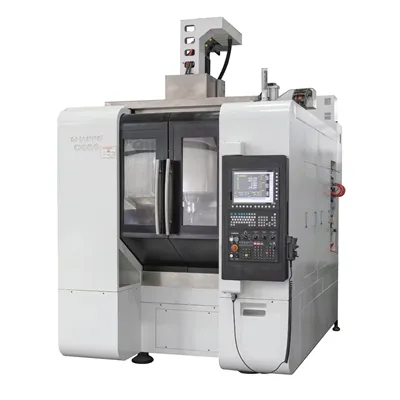

The C300-5 is a compact trunnion 5-axis machining center for precise simultaneous 5-axis machining of small-to-medium parts, ideal for impellers, fittings and multi-face components.
Technical specifications
| Item | Unit | Spec | |
|---|---|---|---|
| Travel Range | X-axis travel | mm | 400mm |
| Y-axis travel | mm | 520mm | |
| Z-axis travel | mm | 330mm | |
| Rotary axis C | deg | 0-360 | |
| Swing axis A | deg | -110/+30 | |
| Worktable | Clamping face (diameter) | mm | 320 |
| Max. table swing dia. | mm | 520 | |
| Max. Worktable Load | KG | 100 | |
| Spindle nose to table (A at 0°) | mm | 115-445 | |
| Spindle | Outer diameter | mm | 125 |
| Max. Spindle Speed | rpm | 24000/30000 | |
| Power Supply | V | 380 | |
| Spindle Cooling | Oil cooling | ||
| Spindle taper | V | BT30 | |
| Screw / guideway | Ball-screw dia. / pitch | mm | X,Y,Z: Ф32mm/10mm |
| Guideway width | XYZ:35 roller | ||
| Tool Magazine | Tool-holder spec | T | BT30 |
| Magazine Capacity | tools | 28 | |
| Max. tool dia. (adjacent tool/empty) | mm | 50 | |
| Max. tool length | mm | 150 | |
| Tool-to-tool change time | s | 2.9 | |
| Electrical | Spindle Motor Power | KW | 12.5 |
| X/Y-axis motor | KW | 2.4 kW | |
| Z-axis motor (braked) | KW | 3.9 kW | |
| ACrotary table | / | DTR320C-500 | |
| Max. speed | X/Y/Z cutting feed rate range | mm/min | 30000 |
| Rotary axis C | rpm | 350 | |
| Swing axis A | rpm | 150 | |
| Accuracy | Positioning accuracy (X/Y/Z) | mm | ±0.01/300 |
| Rotary C / swing A axis | deg | ±0.006 | |
| Repeatability (X/Y/Z) | mm | ±0.005 | |
| Rotary C / swing A axis | deg | ±0.004 | |
| Others | CNC System | 220MA-5 PLUS | |
| Air Pressure | 6 kgf/cm² | ||
| Dimensions (L×W×H) | mm | 2230*1650*2630 | |
| Machine Weight | kg | approx. 4500 |
Equipment
Standard equipment
- Bed — Cast Iron — Resin-sand casting (HT250)
- Bed — Lubrication Circuit — Automatic (Auto lubrication)
- Bed — Ball Screw — HIWIN (Taiwan)Ball Screw (Ball screw3210)
- Bed — Linear Guideway — HIWIN (Taiwan)Linear guideway (XYZ: RG35(ball))
- Bed — Spindle — Ronghua (Jiangsu)PM synchronous high-speed motor spindle (BT30)
- Bed — ACrotary table — Lanlan TechDual-DD (direct-drive) high-torque motors (DTR320C-500)
- Electrical — Feed-motor type — TaiwanSyntecSyntec (XY:2.4 kW /Z:3.9 kW)
- Electrical — Spindle — PM synchronous high-speed motor spindle (12.5 kW)
- Lubrication — Electric oiler — RGB electric oiler (Electric oiler)
- Lighting — Linear work lamp (MWD-F3-282)
- Accessories — Tool holders / collets — BBT30 (6 pcs each)
- Accessories — Tools (1 set)
- Accessories — Tool-holder stand — BT30 (1 pcs)
- Accessories — Manual (USB e-document)
- Accessories — Tool setter (1 pcs)
- Service — Freight — in/out province (in/out province)
- Service — Training — on-site (On-site)
- Service — Packing — Wooden-crate packing (Wooden-crate packing)
- Service — Warranty — 1 year (1 yr)
Optional equipment
- System — CNC: Syntec (Taiwan) (220MA-5 PLUS)
- Tool Change — Pneumatic tool changer — Chain-type servo magazine (BT30Tool Holder28 tools)
- Appearance — Sheet-metal Enclosure — Full enclosure (Ivory + dark grey)
- Chip Conveyor — Chip Conveyor — ChienKuan
About this model
This 5-Axis Machining Center is manufactured by our partner factory in Dongguan, China, and supplied direct by CENNETIC with factory-direct pricing, a standard warranty and remote setup support. Specifications are representative and can be confirmed against your machining requirements before order.
