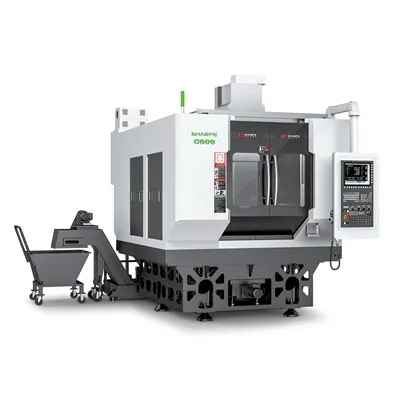

The C400 is a high-rigidity trunnion 5-axis machining center designed for heavy cutting on tough materials, combining a robust cast bed with direct-drive rotary axes for accurate multi-axis profiling.
Technical specifications
| Item | Unit | Spec | |
|---|---|---|---|
| Travel Range | X-axis travel | mm | 500mm |
| Y-axis travel | mm | 625mm | |
| Z-axis travel | mm | 400mm | |
| Rotary axis C | deg | 0-360 | |
| Swing axis A | deg | ±110 | |
| Max. workpiece swing dia. | mm | 450 | |
| Worktable | Clamping face (diameter) | mm | 400 |
| Max. Worktable Load | KG | 300 | |
| Spindle nose to table (A at 0°) | mm | 45-445 | |
| Spindle | Outer diameter | mm | 150 |
| Max. Spindle Speed | rpm | 18000 | |
| Power Supply | V | 380 | |
| Spindle Cooling | Oil cooling | ||
| Spindle taper | V | HSK-A63 | |
| Screw / guideway | Roller-screw dia. / pitch | mm | X,Y,Z: Ф40mm/10mm |
| Guideway width | mm | XYZ:45 ball | |
| Tool Magazine | Tool-holder spec | T | HSK-A63 |
| Magazine Capacity | tools | 24 | |
| Max. tool dia. (adjacent tool/empty) | mm | 75/150 | |
| Max. tool length | mm | 250 | |
| Tool-to-tool change time | s | 2.9 | |
| Electrical | Spindle Motor Power | KW | 20 |
| X/Y-axis motor | KW | 2.9 kW | |
| Z-axis motor (braked) | KW | 5.9 kW | |
| ACrotary table | DD (direct-drive) | RDD (direct-drive)S400 | |
| Speed | X/Y/Z cutting feed rate range | mm/min | 24000 |
| Rotary axis C | deg/min / rpm | 30 | |
| Swing axis A | deg/min / rpm | 30 | |
| Accuracy | Positioning accuracy (X/Y/Z) | mm | ±0.01/300 |
| Rotary C / swing A axis | deg | ±0.006 | |
| Repeatability (X/Y/Z) | mm | ±0.005 | |
| Rotary C / swing A axis | deg | ±0.004 | |
| 3-axis linear scales (Optodiode/Yuheng) | mm | ±0.003 | |
| Others | CNC System | TaiwanSyntec | 220MA-5 |
| Air Pressure | 6 kgf/cm² | ||
| Dimensions (L×W×H) | mm | 2810X4100X3200 | |
| Machine Weight | kg | approx. 8000 |
Equipment
Standard equipment
- Bed — Cast Iron — Resin-sand casting (HT300)
- Bed — Ball Screw — HIWIN (Taiwan)Ball Screw (Ball screw4010)
- Bed — Linear Guideway — INA (Germany)Linear guideway (XYZ: RG45(ball))
- Bed — Spindle — ABIGPM synchronous high-speed motor spindle (HSK-A63)
- Bed — ACrotary table — Dual-DD (direct-drive) high-torque motors (RDD (direct-drive)S400)
- Appearance — Sheet-metal Enclosure — Full enclosure (Ivory + dark grey)
- Lubrication — Electric oiler — RGB electric oiler (Electric oiler)
- Chip Conveyor — Screw chip conveyor — ChienKuan (Screw chip conveyor+外置Chain-type)
- Linear scale — Full closed-loop — X/Y/Z (Yuheng Optics)
- Accessories — Tool holders / collets — HSKA63 (6 pcs each)
- Accessories — Tool kit (1 set)
- Accessories — Tool-holder stand — HSKA63 (1 pcs)
- Accessories — Manual (USB e-document)
- Accessories — Tool setter (1 pcs)
- Service — Freight — in/out province (in/out province)
- Service — Training — on-site (On-site)
- Service — Packing — Wooden-crate packing (Wooden-crate packing)
- Service — Warranty — 1 year (1 yr)
Optional equipment
- Electrical — Feed-motor type — TaiwanSyntec (XY: 2.9 kW Z:5.9 kW)
- System — CNC: Syntec (Taiwan) (220MA-5(15-in))
- Tool Change — Pneumatic tool changer — center-mount servo magazine (HSK A63Tool Holder 24 tools)
About this model
This 5-Axis Machining Center is manufactured by our partner factory in Dongguan, China, and supplied direct by CENNETIC with factory-direct pricing, a standard warranty and remote setup support. Specifications are representative and can be confirmed against your machining requirements before order.
