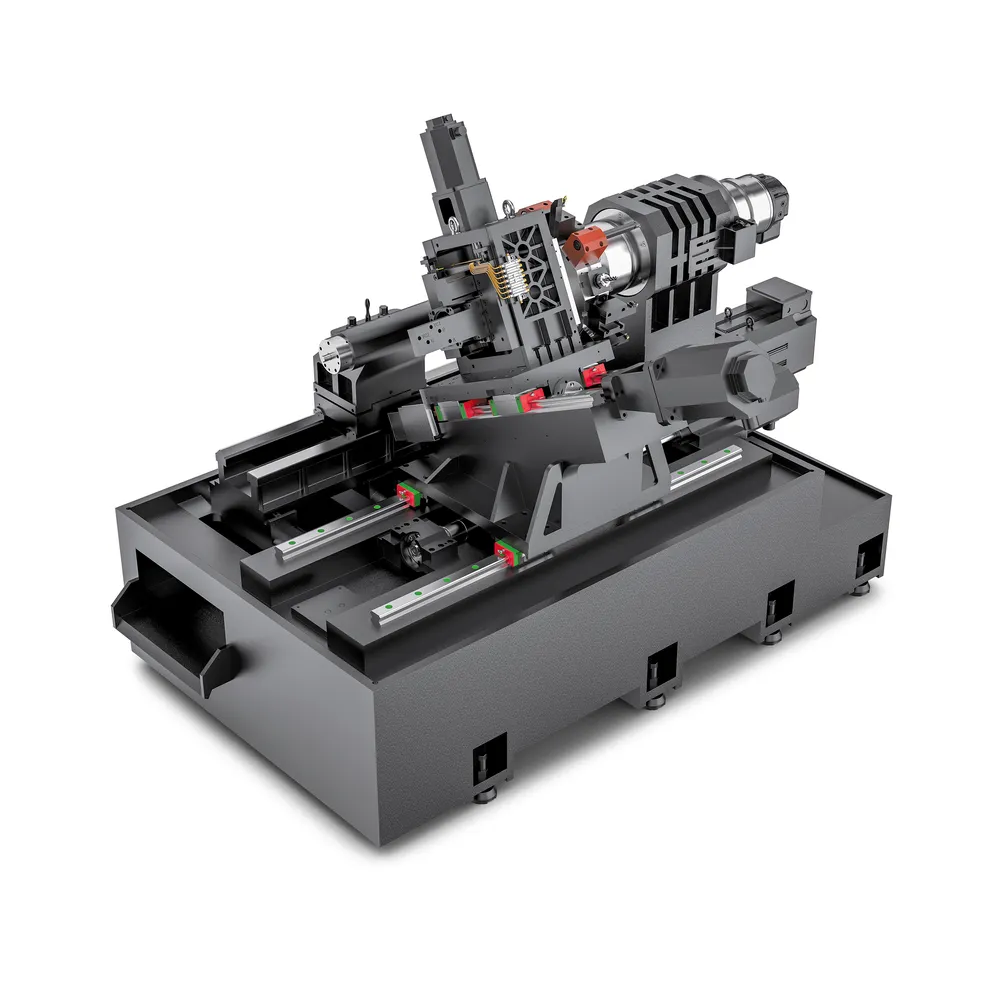

The CENNETIC 6075 is a turn-mill machining centre using a straight-Y (direct-Y) layout that aligns the Y-axis guideway, slide and spindle in one line for a short force path and long support span. The result is a rigid, chatter-resistant platform for combined turning and milling of shaft and disc parts in copper, aluminium, cast iron, steel and titanium.
Technical specifications
| Item | Unit | Spec | |
|---|---|---|---|
| Processing capacity | Max. swing over bed | mm | φ750 |
| Max. machining diameter | mm | φ600 | |
| Max. machining length | mm | 750 | |
| Travel | X-axis travel | mm | 320 |
| Z-axis travel | mm | 800 | |
| Feed | X/Z ball screw | — | 3210-C3 / 4012-C3 (HIWIN / PMI) |
| X/Z guideway | — | 45 roller (HIWIN / PMI) | |
| Accuracy | Repeatability (X/Z) | mm | ±0.003 |
| Positioning (X/Z) | mm | ±0.005 | |

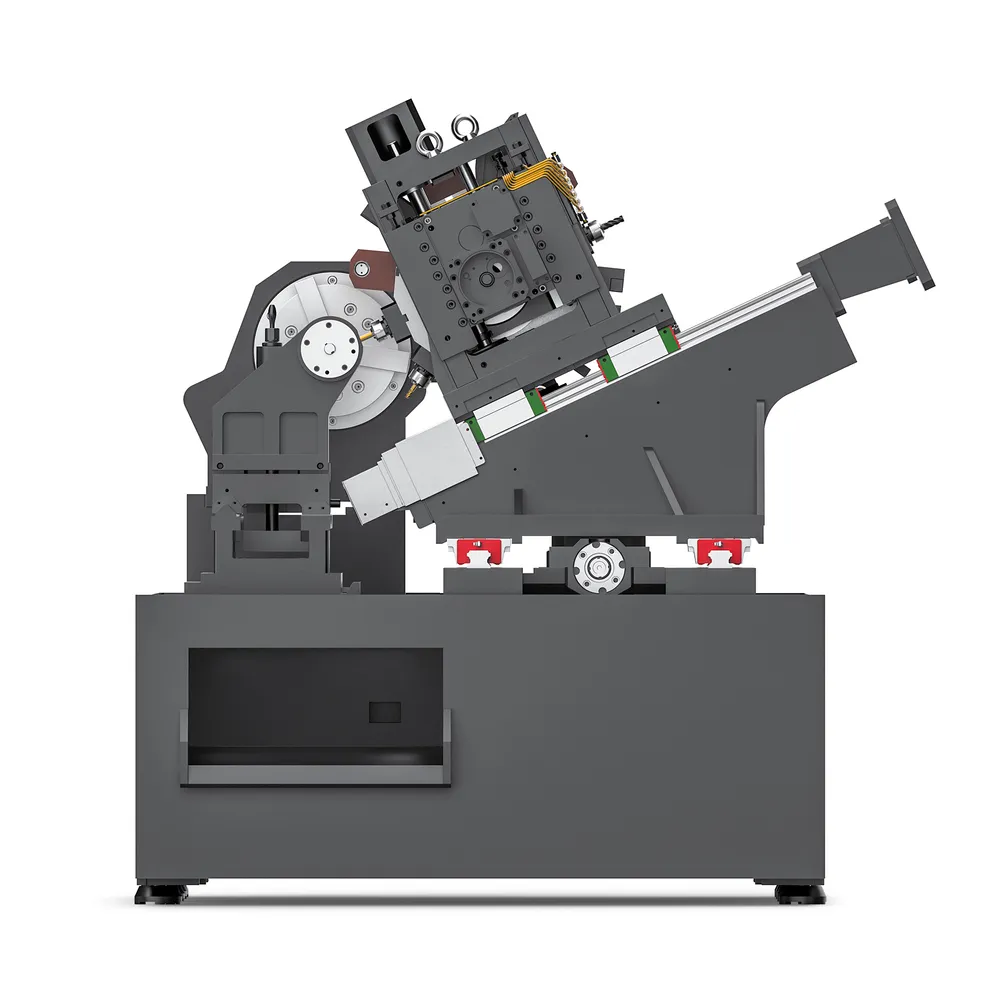

| Bed | Bed & inclination | — | 30° slant bed |

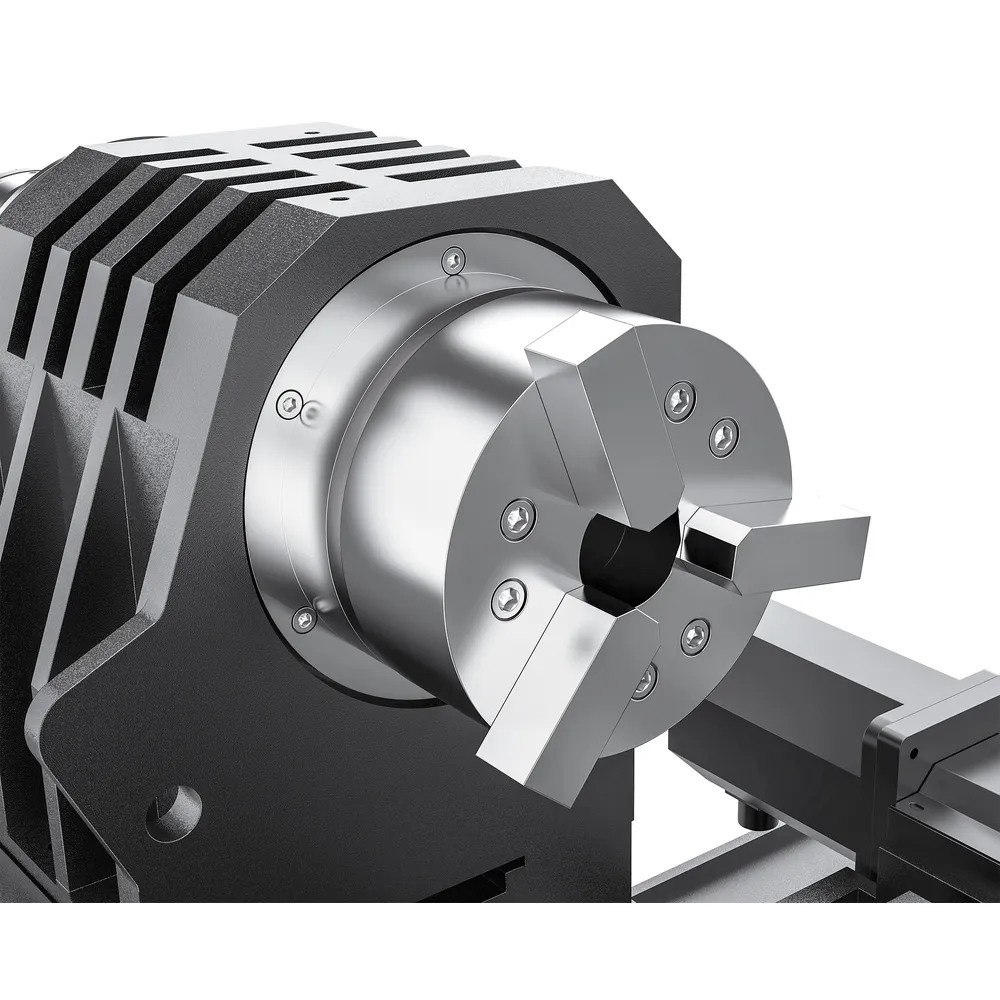

| Spindle unit | Max. speed | rpm | 3000 |
| Through-hole dia. | mm | φ86 | |
| Spindle nose | — | A2-8 | |
| Spindle motor power | kW | 15 | |
| Hydraulic chuck / collet | — | 10″ | |
| Tailstock | Quill diameter | mm | φ80 |
| Quill taper | — | MT-5 | |
| Quill travel | mm | 100 | |
| Other | X/Z screw-end coupling | mm | φ20 / φ24 |
| Center height | mm | 170 | |

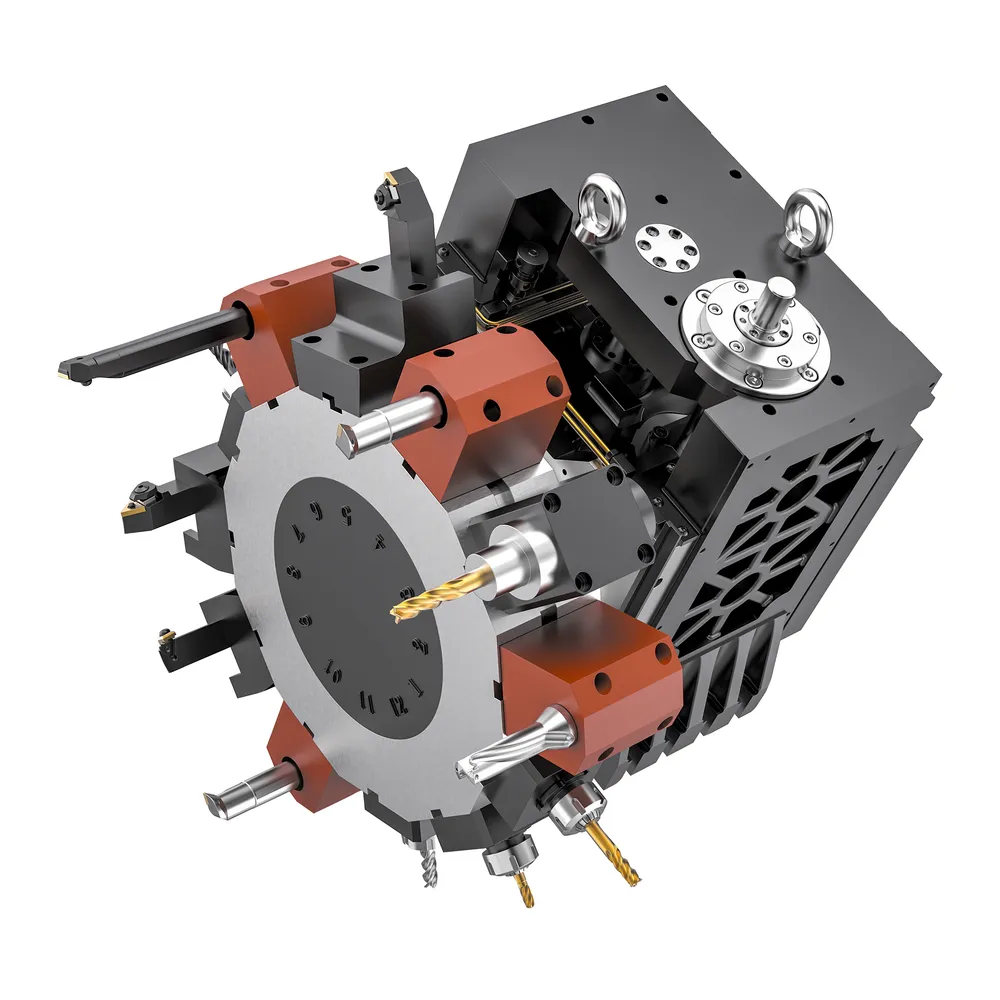

| Recommended turret | — | Servo turret 125-12 / live turret BMT55-Y | |
| Machine weight | kg | 5000 | |
| Dimensions (L×W×H) | mm | 3180 × 1800 × 1950 |
Equipment
Standard equipment
- System — CNC: SYNTEC 22TB
- System — Open bus servo communication — Mechatrolink-III / EtherCAT
- System — High-speed spindle orientation
- System — Optimised drill / tap retract (shortened G00)
Optional equipment
- Parts receiver
- Chip conveyor
- 90° live tool holder (C-axis)
- Automatic bar feeder
- 30 kg high-pressure coolant pump
- Anti-collision system
- Lathe tool setter
About this model
This Turn-Mill Machining Center is manufactured by our partner factory in Dongguan, China, and supplied direct by CENNETIC with factory-direct pricing, a standard warranty and remote setup support. Specifications are representative and can be confirmed against your machining requirements before order.
