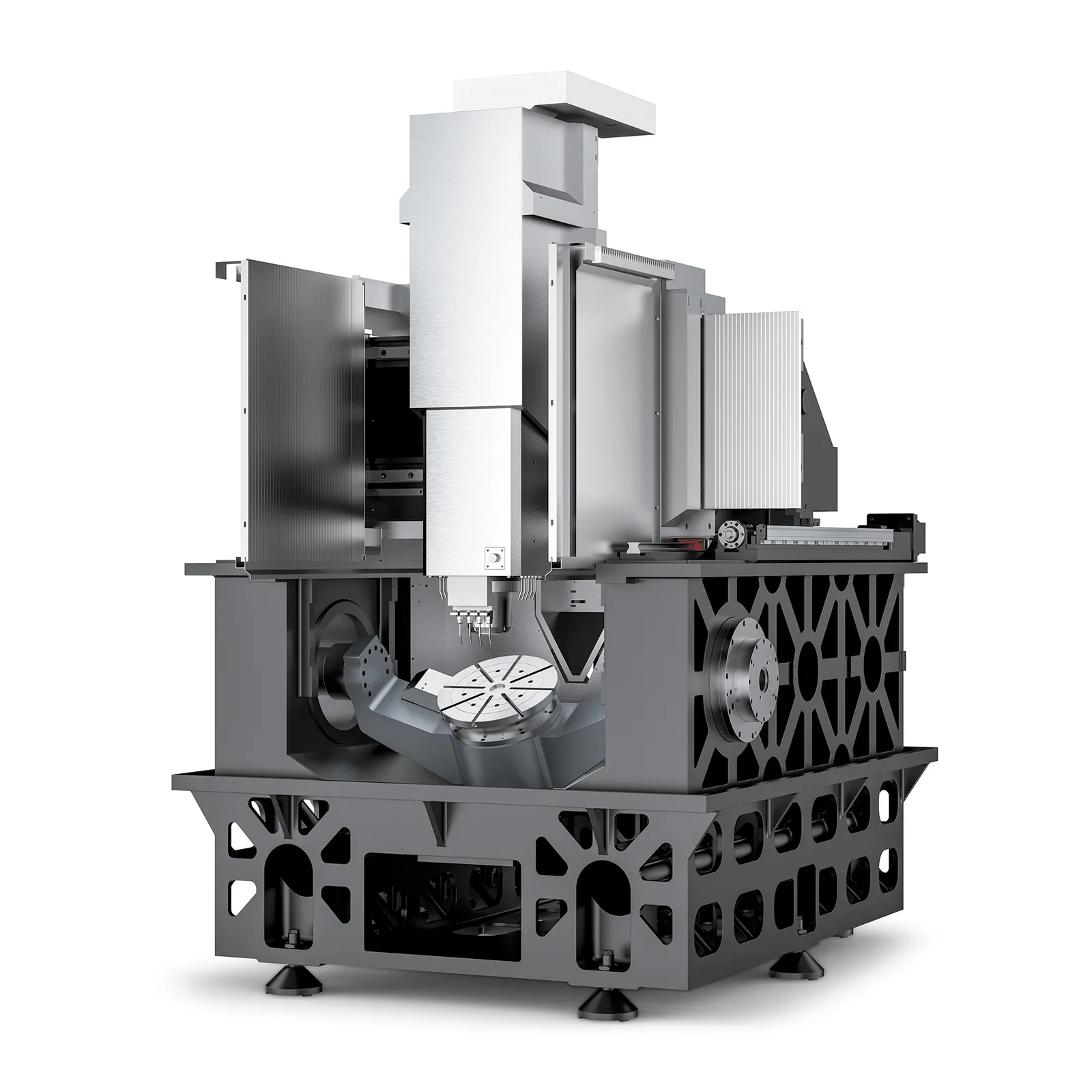

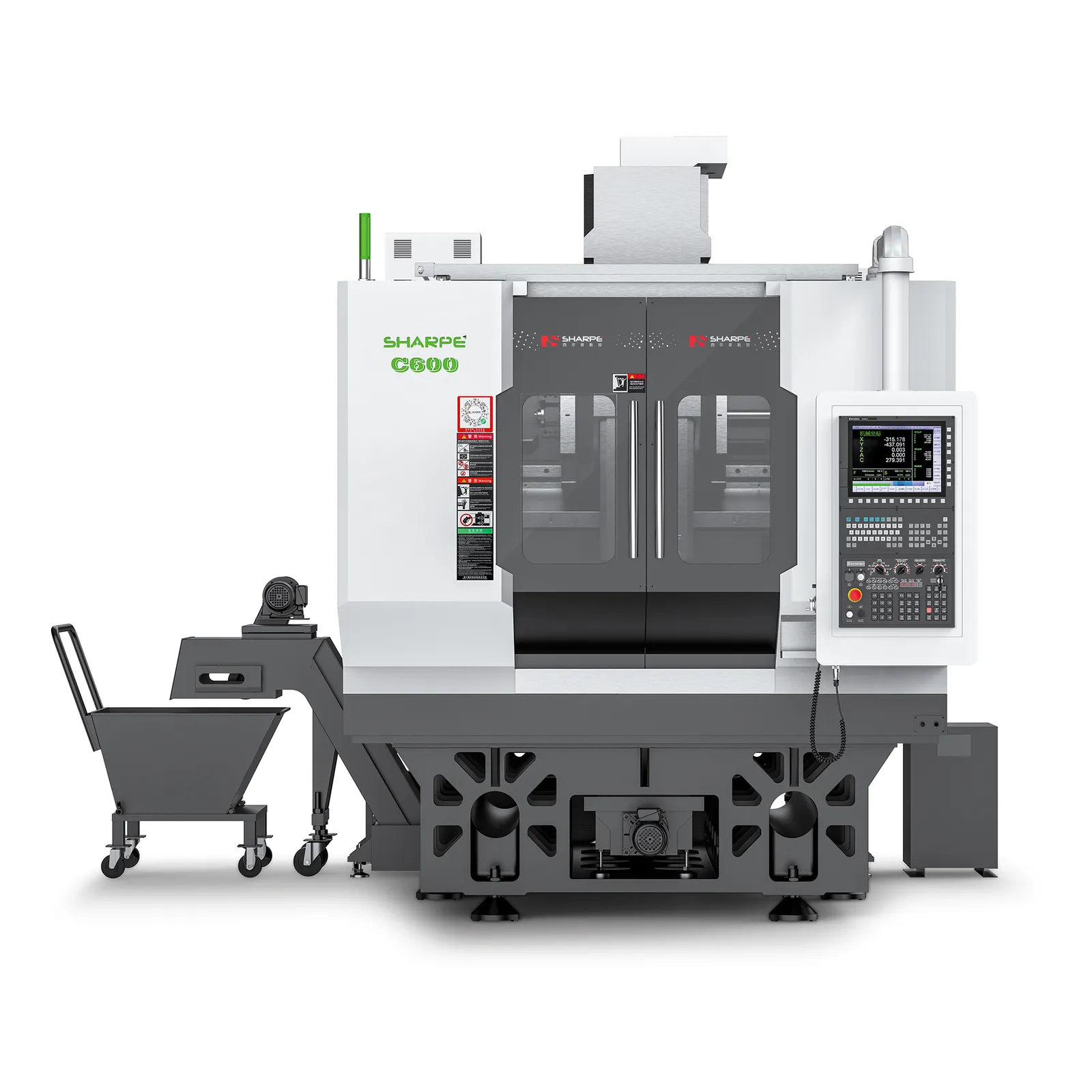

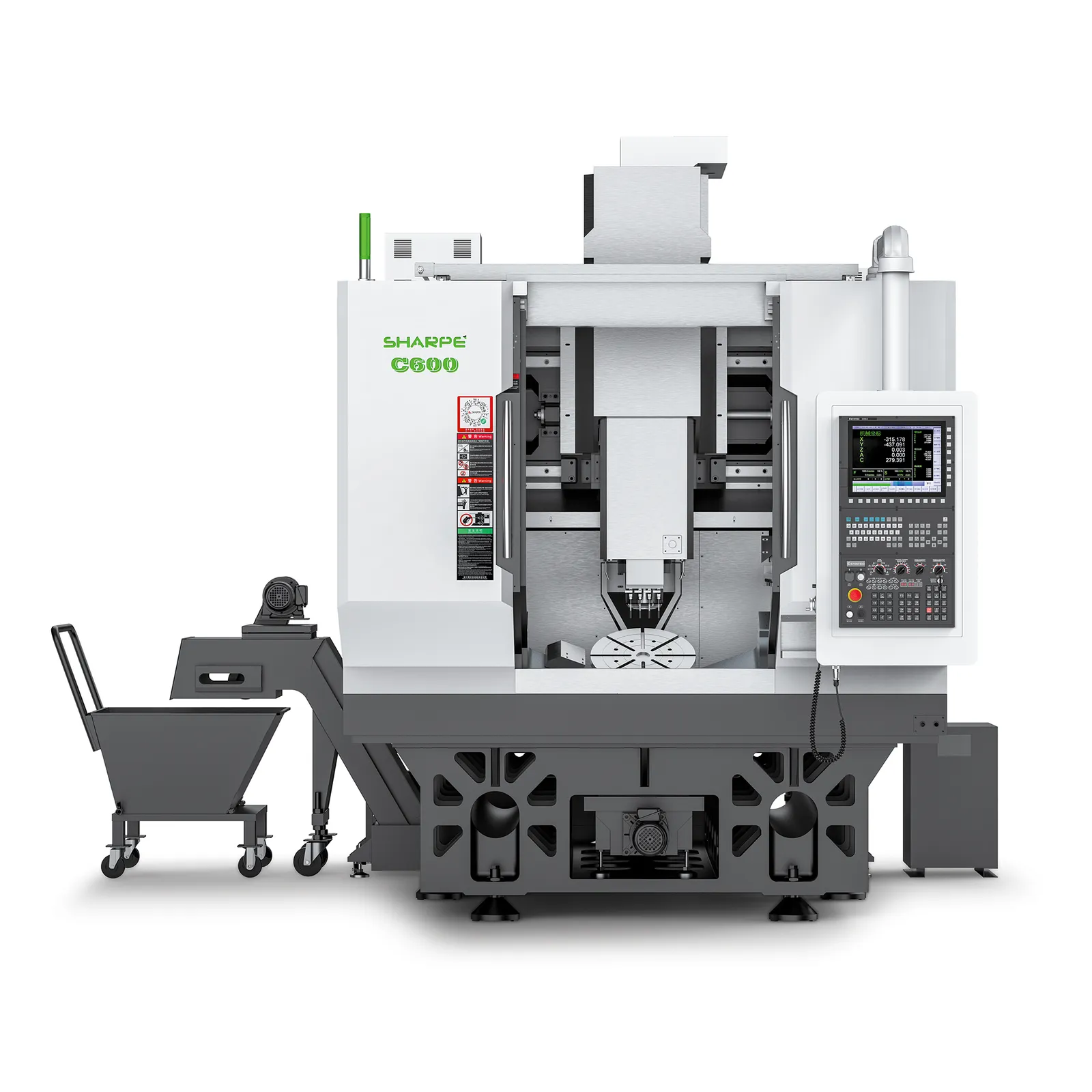

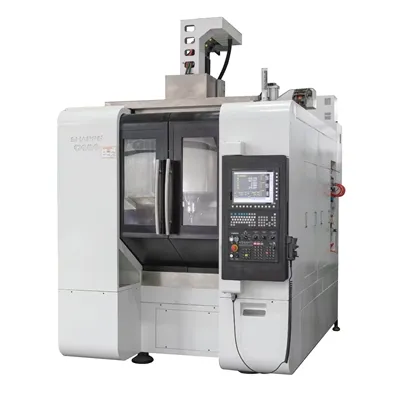

The C600 is a trunnion-type 5-axis machining center built for simultaneous 5-face machining of complex parts. Its A/C rotary table suits aerospace, automotive and mold components that need tight angular accuracy in a single setup.
Technical specifications
| Item | Unit | Spec | |
|---|---|---|---|
| Travel Range | X-axis travel | mm | 585mm |
| Y-axis travel | mm | 780mm | |
| Z-axis travel | mm | 400mm | |
| Rotary axis C | deg | 0-360 | |
| Swing axis A | deg | ±95 | |
| Worktable | Clamping face (diameter) | mm | 400 |
| Max. Worktable Load | KG | 300 | |
| Spindle nose to table (A at 0°) | mm | 47-457 | |
| Spindle | Outer diameter | mm | 150 |
| Max. Spindle Speed | rpm | 18000 | |
| Power Supply | V | 380 | |
| Spindle Cooling | Oil cooling | ||
| Spindle taper | V | HSK-A63 | |
| Screw / guideway | Roller-screw dia. / pitch | mm | X,Y,Z: Ф40mm/10mm |
| Guideway width | XYZ:45 ball | ||
| Tool Magazine | Tool-holder spec | T | HSK-A63 |
| Magazine Capacity | tools | 24 | |
| Max. tool dia. (adjacent tool/empty) | mm | 75/150 | |
| Max. tool length | mm | 220 | |
| Tool-to-tool change time | s | 2.9 | |
| Electrical | Spindle Motor Power | KW | 15 |
| X/Y-axis motor | KW | 2.9 kW | |
| Z-axis motor (braked) | KW | 2.9 kW | |
| ACrotary table | DD (direct-drive) | RDD (direct-drive)S400 | |
| Speed | X/Y/Z cutting feed rate range | mm/min | 30000 |
| Rotary axis C | deg/min / rpm | 30 | |
| Swing axis A | deg/min / rpm | 30 | |
| Accuracy | Positioning accuracy (X/Y/Z) | mm | ±0.01/300 |
| Rotary C / swing A axis | deg | ±0.006 | |
| Repeatability (X/Y/Z) | mm | ±0.005 | |
| Rotary C / swing A axis | deg | ±0.004 | |
| Others | CNC System | 220MA-5 | |
| Air Pressure | 6 kgf/cm² | ||
| Footprint (L×W×H) | mm | 4200*3150*3200 | |
| Machine Weight | kg | approx. 8000 |
Equipment
Standard equipment
- Bed — Cast Iron — Resin-sand casting (HT300)
- Bed — Lubrication Circuit — Automatic (Auto lubrication)
- Bed — Ball Screw — HIWIN (Taiwan)Ball Screw (Ball screw4010)
- Bed — Linear Guideway — INA (Germany)Linear guideway (XYZ: 45(ball))
- Bed — Spindle — ABIGPM synchronous high-speed motor spindle (HSK-A63)
- Bed — ACrotary table — Dual-DD (direct-drive) high-torque motors (RDD (direct-drive)S400)
- Electrical — Feed-motor type — Rexroth (Germany) (XYZ: 2.9 kW)
- Electrical — Spindle — ABIGPM synchronous high-speed motor spindle (15 kW)
- Appearance — Sheet-metal Enclosure — Full enclosure (White + black)
- Lubrication — Electric oiler — RGB electric oiler (Electric oiler)
- Lighting — Linear work lamp (MWD-F3-282)
- Chip Conveyor — Screw chip conveyor — ChienKuan (80OD)
- Accessories — Tool holders / collets — HSKA63 (6 pcs each)
- Accessories — Tools (1 set)
- Accessories — Tool-holder stand — HSKA63 (1 pcs)
- Accessories — Manual (USB e-document)
- Service — Freight — in/out province (in/out province)
- Service — Training — on-site (On-site)
- Service — Packing — Wooden-crate packing (Wooden-crate packing)
- Service — Warranty — 1 year (1 yr)
Optional equipment
- System — CNC: Syntec (220MA-5)
- Tool Change — Pneumatic tool changer — center-mount servo magazine (A63Tool Holder24 tools)
- Accessories — Tool setter (1 pcs)
About this model
This 5-Axis Machining Center is manufactured by our partner factory in Dongguan, China, and supplied direct by CENNETIC with factory-direct pricing, a standard warranty and remote setup support. Specifications are representative and can be confirmed against your machining requirements before order.
