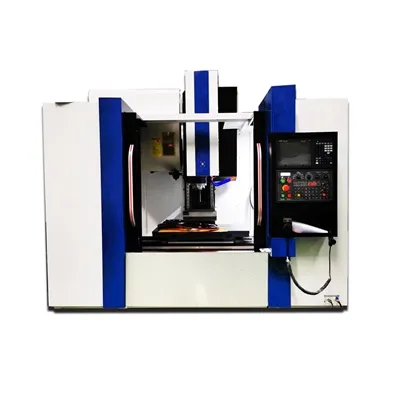

The M6 is a high-rigidity vertical machining center for mold and general parts machining, built for stable finishing and heavy cuts.
Technical specifications
| Item | Unit | Spec | |
|---|---|---|---|
| Bed | Cast Iron | HT300 | |
| Worktable Size | mm | 1300*610 | |
| Max. load (evenly distributed) | kg | 1200 | |
| T-slot size | Width–pitch–no. | 18mm-125mm-5 | |
| travel range | X-axis travel | mm | 1100 |
| Y-axis travel | mm | 600 | |
| Z-axis travel | mm | 510 | |
| Spindle | Spindle drive type | - | Belt drive (direct) |
| Spindle center to column guideway | mm | 686 | |
| Spindle nose to table surface | Min.–max. | 150mm-660mm | |
| Spindle | Taper bore (7:24) | OD150mm/BT40 | |
| Speed range | r/min | Belt: 0-8000/Direct: 0-12000 | |
| Screw / guideway | Roller-screw dia. / pitch | mm | C3 ground ball screw4010 |
| Guideway width | X,Yroller45/Z:55 | ||
| Tool Magazine | Max. tool length | mm | 300 |
| Max. tool weight | kg | 7 | |
| Disc-type | tools | 32 | |
| Max. tool disc diameter | mm | φ100 | |
| Disc-type | s | 1.1-2.9 | |
| Electrical | Spindle motor power | Rated / max. power | Belt: 11-15 kW/Direct: 7.5-11 kW |
| Output torque | Rated / max. torque | 69.4/94.6 | |
| X-axis | KW/N.m | 5.9 kW/28.4 N·m(SyntecAM28) | |
| Y-axis | KW/N.m | 5.9 kW/28.4 N·m(SyntecAM28) | |
| Z-axis | KW/N.m | 5.9 kW/28.4 N·m(SyntecAM28)with brake | |
| Speed | X/Y/Z rapid traverse rate | mm/min | 30000 |
| Cutting feed rate range | mm/min | 1-10000 | |
| Accuracy | Repeatability (X/Y/Z) | mm | ±0.003/300 |
| Positioning accuracy (X/Y/Z) | ±0.005/300 | ||
| Others | CNC System | FANUC/Mitsubishi/Syntec | 0i-MF5 Plus/M80/22MA |
| Air Pressure | 6 kgf/cm² | ||
| Dimensions (L×W×H) | mm | 3000*3288*3287 | |
| Machine Weight | kg | approx. 8000 |
Equipment
Standard equipment
- Bed — Cast Iron — Resin-sand casting (HT300)
- Bed — Lubrication Circuit — Automatic (Auto lubrication)
- Bed — Ball Screw — HIWIN (Taiwan)Ball Screw/THK (Ball screw4010)
- Bed — Linear Guideway — HIWIN (Taiwan)/THKLinear guideway (XY: RG45(roller)/Z:55)
- Appearance — Sheet-metal Enclosure — Full enclosure (Ivory + dark grey)
- Lubrication — Electric oiler — RGB electric oiler (Electric oiler)
- Lighting — Linear work lamp
- Accessories — Tool holders / collets — BT40-ER32 (10 pcs each)
- Accessories — Tool kit (1 set)
- Accessories — Tool-holder stand (1 pcs)
- Accessories — Manual (1 set)
- Service — Freight — in/out province (in/out province)
- Service — Training — on-site (On-site)
- Service — Warranty — 1 year (1 yr)
Optional equipment
- Bed — Spindle — DANQUAN (Taiwan) (OD150mm/BT40-8000 rpm)
- Electrical — Feed-motor type — FANUC/Mitsubishi/Syntec (5.9 kW/28.4 N·m(SyntecAM28))
- Electrical — Spindle — FANUC/Mitsubishi/Syntec (11-15 kW/69.4/94.6)
- System — CNC: FANUC / Mitsubishi / Syntec (0i-MF5 Plus/M80/22MA)
- Tool Change — Pneumatic tool changer — OKADA (Taiwan) (Disc-typeBT40-32 tools)
About this model
This Vertical Machining Center is manufactured by our partner factory in Dongguan, China, and supplied direct by CENNETIC with factory-direct pricing, a standard warranty and remote setup support. Specifications are representative and can be confirmed against your machining requirements before order.
