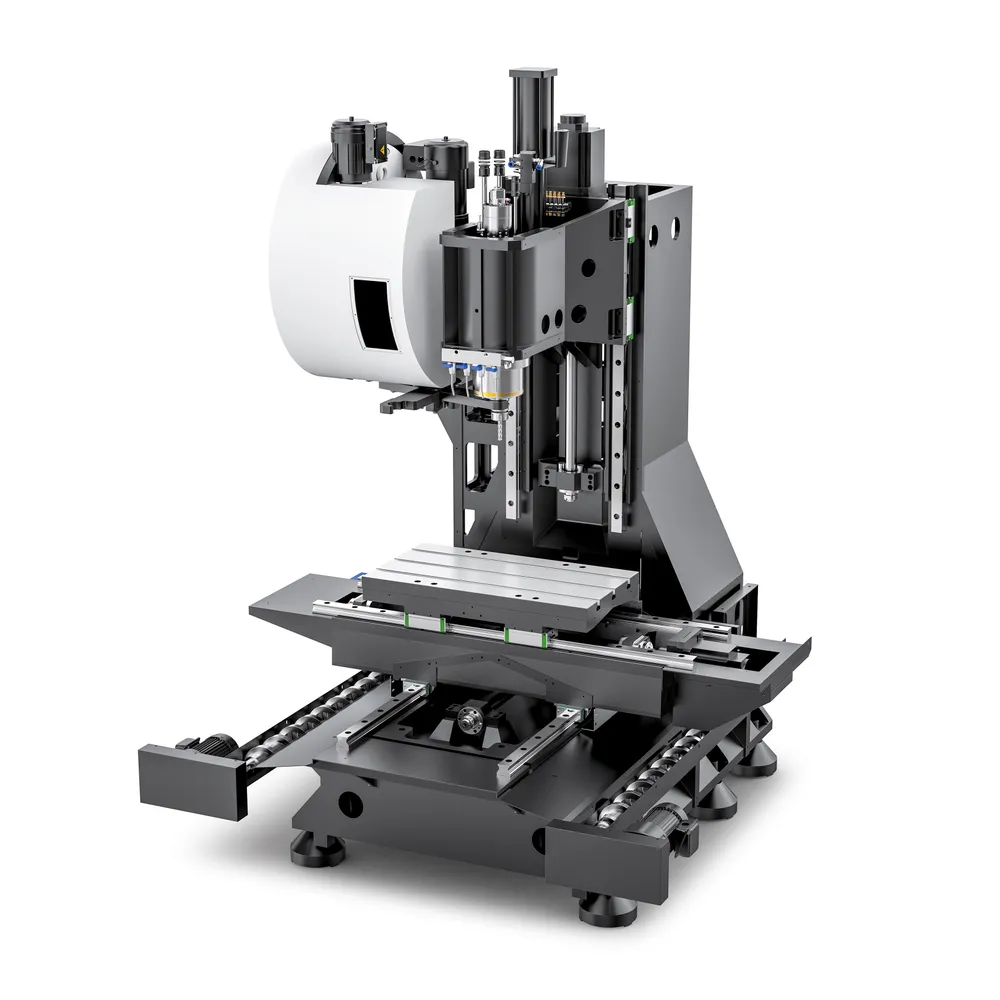

The CENNETIC M4 is a heavy-duty vertical machining center built on a one-piece, 5-ton-class cast bed with wide-spaced guideways for rigid, vibration-free cutting. A BT40 spindle (up to 12,000 rpm), a 24-tool disc magazine and 670 × 430 × 520 mm travel make it well suited to mold bases, steel parts and multi-operation machining.
Technical specifications
| Item | Unit | Spec | |
|---|---|---|---|
| Worktable | Table size | mm | 750 × 420 |
| Max. table load | kg | 350 | |
| T-slots (width × pitch × no.) | mm | 18 × 125 × 3 | |
| Travel | X-axis travel | mm | 670 |
| Y-axis travel | mm | 430 | |
| Z-axis travel | mm | 520 | |
| Machining range | mm | 670 × 430 × 520 | |
| Spindle | Spindle center to column guideway | mm | 505 |
| Spindle nose to table | mm | 105 – 625 | |
| Spindle drive | — | Belt / direct | |
| Spindle taper | — | BT40 (Ø150) | |
| Speed range | r/min | Belt 0–8,000 / direct 0–12,000 | |
| Spindle motor power | kW | 7.5 – 11 | |
| Feed | Feed motor (X/Y) | kW | 2.4 (Syntec) / 1.5 (Mitsubishi) |
| Feed motor (Z, braked) | kW | 3.9 (Syntec) / 3.0 (Mitsubishi) | |
| Rapid traverse (X/Y/Z) | m/min | 30 / 30 / 30 | |
| Cutting feed rate | mm/min | 1 – 10,000 | |
| Tool magazine | Magazine type | — | Disc-type, arm ATC |
| Capacity | tools | 24 | |
| Max. tool length | mm | 300 | |
| Max. tool weight | kg | 8 | |
| Max. tool disc diameter | mm | Ø100 | |
| Tool-to-tool change | s | 1.4 | |

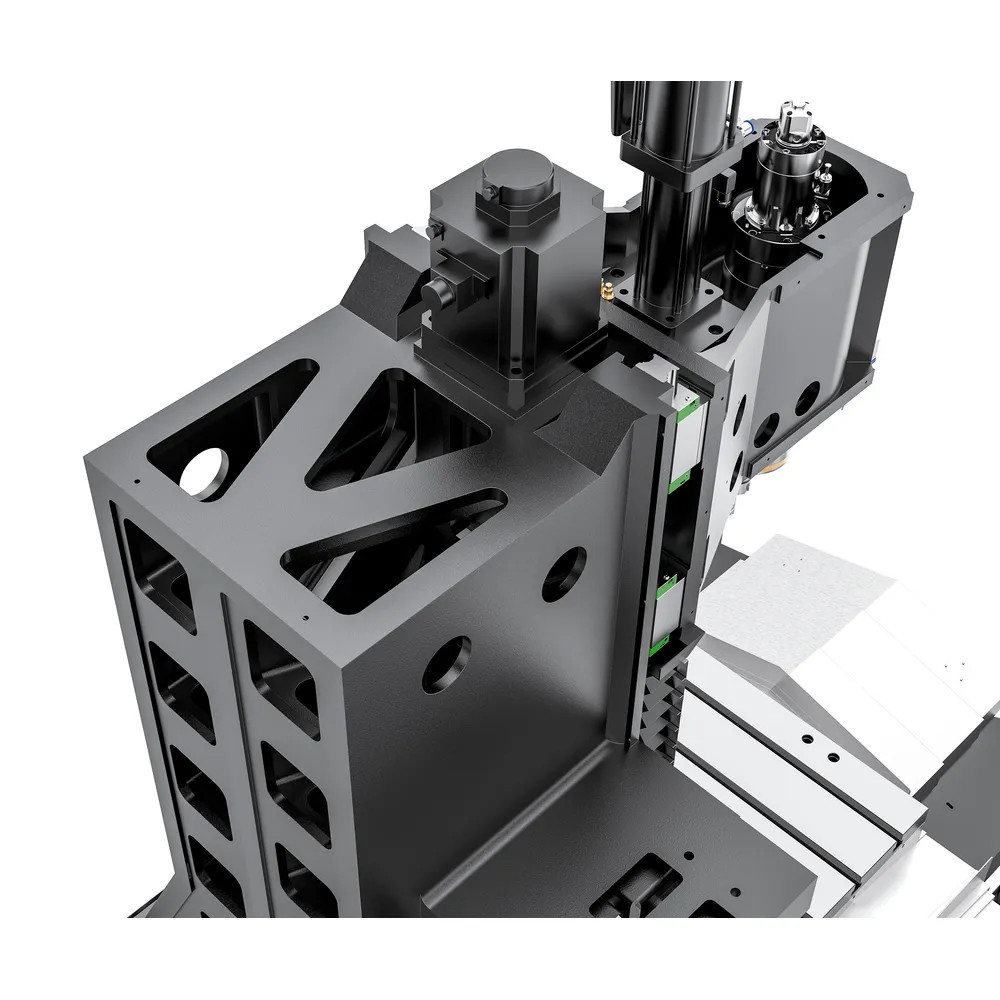

| Structure | Bed | — | Meehanite cast iron, resin-sand (HT250) |
| Ball screw | — | HIWIN C3 ground Ø40 × 12 | |

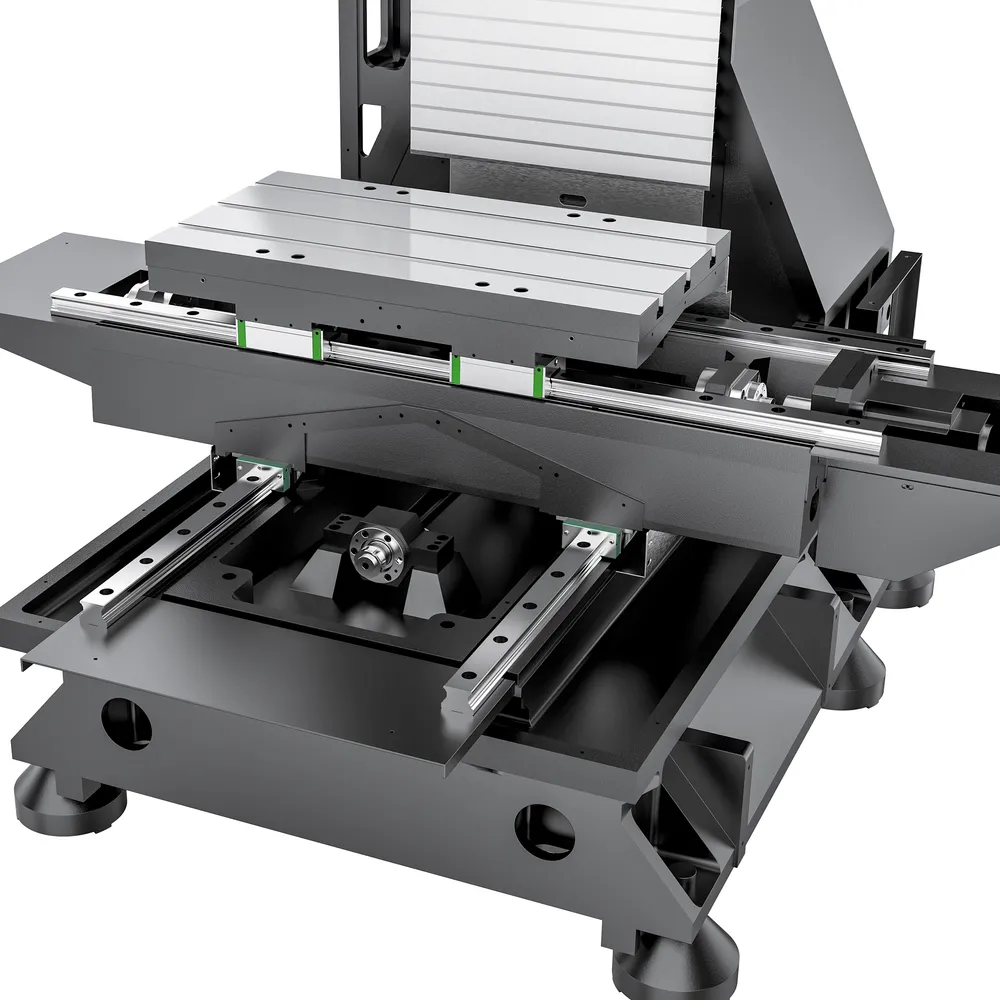

| Linear guideway | — | INA roller RG45 (X/Y/Z) | |
| Accuracy | Positioning accuracy | mm | ±0.005 / 300 (JIS B6330) |
| Repeatability | mm | ±0.003 | |
| Electrical & other | CNC system | — | Syntec 22MA / Mitsubishi M80 |
| Total power | kVA | 18 | |
| Air pressure | MPa | 0.5 – 0.7 | |
| Machine size (L × W × H) | mm | 2000 × 2300 × 2850 | |
| Machine weight | kg | approx. 5,000 |
Equipment
Standard equipment
- Bed — Cast iron — resin-sand casting (HT250)
- Bed — Ball screw — HIWIN (Taiwan) C3 Ø40×12
- Bed — Linear guideway — INA (Germany) roller RG45 (X/Y/Z)
- Appearance — Sheet-metal enclosure — full enclosure (ivory + dark grey)
- Lubrication — RGB electric oiler
- Lighting — LED linear work lamp
- Service — Freight — out-of-province
- Service — Dedicated transport
- Service — Warranty — 2 years
- Service — Training — on-site
Optional equipment
- Spindle — Suge (Taiwan) mechanical spindle (BT40, 12,000 rpm)
- Electrical — Feed motor — Syntec / Mitsubishi servo (Z braked)
- Electrical — Spindle motor — Syntec / Mitsubishi (7.5–11 kW)
- System — CNC — Syntec 22MA / Mitsubishi M80A
- Tool Change — OKADA (Taiwan) disc-type magazine (BT40, 24 tools)
- Chip Conveyor — ChienKuan scraper-type
About this model
This Vertical Machining Center is manufactured by our partner factory in Dongguan, China, and supplied direct by CENNETIC with factory-direct pricing, a standard warranty and remote setup support. Specifications are representative and can be confirmed against your machining requirements before order.
