CENNETIC CNC MACHINERY
L-1060
Two-Rail Vertical Machining Center
Precision-engineered with resin sand casting and double artificial aging treatment, the L-1060 delivers exceptional rigidity and long-term dimensional stability for high-demand machining applications.
1000mmX-Axis Travel
600mmY-Axis Travel
600mmZ-Axis Travel
BT40/160Spindle Taper
8000rpmMax Spindle Speed
24TTool Magazine
Taiwan Spindle System
C3 Grade Ballscrew
Linear Guideway
BT40 Interface
24-Tool ATC
Get a Quote
Full Specifications — Model Comparison
| Specification | Unit | L-850 | L-1060 ★ | L-1370 | L-1580 | L-1890 |
|---|---|---|---|---|---|---|
| — Axis Travel — | ||||||
| X-Axis Travel | mm | 850 | 1,000 | 1,300 | 1,505 | 1,900 |
| Y-Axis Travel | mm | 500 | 600 | 700 | 700 | 700 |
| Z-Axis Travel | mm | 500 | 600 | 600 | 700 | 700 |
| Spindle Nose to Table (Min–Max) | mm | 110–610 | 170–670 | 150–750 | 170–870 | 180–880 |
| Spindle Center to Column | mm | 660 | 800 | 820 | 820 | 820 |
| — Table — | ||||||
| Table Working Area | mm | 1,200×600 | 1,300×600 | 1,400×710 | 1,700×900 | 2,000×900 |
| Max. Table Load | kg | 450 | 800 | 1,300 | 1,300 | 1,700 |
| T-Slot (Width × Pitch × Qty) | mm | 18T×5×90 | 18T×5×100 | 22T×5×140 | 22T×5×140 | 22T×5×165 |
| — Spindle — | ||||||
| Spindle Taper | — | BT40/140 | BT40/160 | BT40/165 | BT50/155 | BT50/190 |
| Max. Spindle Speed | rpm | 8,000 | 8,000 | 8,000 | 8,000 | 8,000 |
| Spindle Motor Power | kW | 7.5 | 11/15 | 15/18.5 | 15/18.5 | 15/18.5 |
| — Feed System — | ||||||
| 3-Axis Motor Power (X/Y/Z) | kW | 2/2/3 | 3/3/3 | 3/3/3 | 4.5/4.5/4.5 | 4.5/4.5/4.5 |
| Rapid Traverse (X/Y/Z) | m/min | 24/24/15 | 24/24/15 | 16/16/12 | 12/12/12 | 12/12/12 |
| Ballscrew Dia. × Pitch (X/Y/Z) | mm | X:36×4 Y:45×4 Z:40×8 | X:40×12 Y:40×12 Z:50×10 | X:40×12 Y:40×12 Z:50×10 | X:63×10 Y:50×10 Z:50×10 | X:63×10 Y:50×10 Z:55×12 |
| — Accuracy — | ||||||
| Positioning Accuracy | mm/300mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| Repeatability | mm/300mm | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 |
| — ATC & Power — | ||||||
| Tool Magazine Capacity | pcs | 24 | 24 | 24 | 24 | 24 |
| Power Requirement | KVA | 25 | 25 | 30 | 35 | 35 |
| Air Pressure | kg/cm² | 6 | 6 | 6 | 6 | 6 |
| Machine Weight | T | 5 | 8 | 11.5 | 13 | 15.5 |
| Overall Dimensions (L×W×H) | mm | 2,860×2,500×2,800 | 3,200×3,000×3,100 | 4,350×3,300×3,400 | 4,480×3,800×3,800 | 4,800×3,900×3,500 |
Mechanical Features
🏗️
High-Rigidity Resin Sand Casting
The machine bed is manufactured using resin sand casting and undergoes two rounds of artificial aging treatment, ensuring high strength, dimensional stability, and resistance to deformation over long-term use.
Double Aging Treatment
⚙️
Full Taiwan Spindle System
The complete spindle assembly is sourced from Taiwan, featuring imported P4-grade precision bearings assembled under constant temperature. Each spindle undergoes high-speed dynamic balancing for smooth, reliable operation.
P4-Grade Bearings
🔩
C3-Grade Precision Ballscrew
All three axes use imported C3-grade precision ballscrews with double-nut preloading and tail-end pre-tensioning. This configuration delivers exceptional rigidity, minimizes backlash, and ensures long-term positioning accuracy.
Double-Nut Preload
📏
Linear & Rectangular Guideways
X and Y axes adopt linear guideways for low friction and high rapid traverse speed. The Z-axis uses rectangular guideways with imported wear-resistant scraped surfaces, providing superior rigidity and durability.
Imported Wear-Resistant
🛢️
Centralized Lubrication System
The entire machine uses a centralized lubrication system with pressure detection and volumetric oil distribution. This guarantees precise, metered lubrication to all critical components, extending service life significantly.
Pressure Monitoring
🎯
High-Precision Three-Axis Configuration
The three-axis system achieves positioning accuracy of ±0.005/300mm and repeatability of ±0.003/300mm, meeting the demands of precision mold making, aerospace components, and complex part machining.
±0.003mm Repeatability

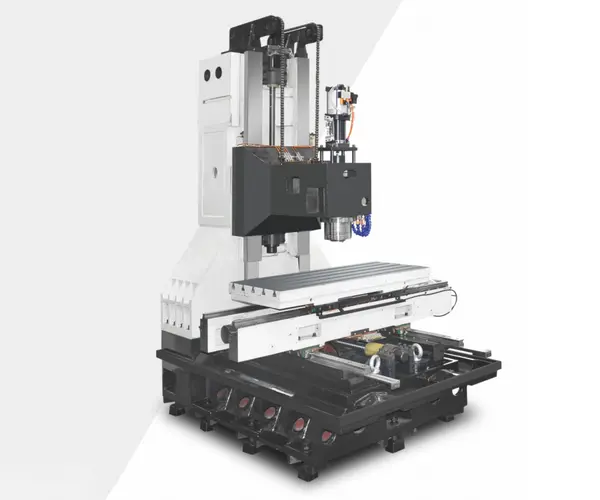

Z-Axis & Column Structural Advantages
Precision Z-Axis Engineering & Column Design
✓
Inverted V-Shape Column: The “inverted V” rib structure effectively increases column rigidity, suppresses vibration during heavy cutting, and eliminates machining chatter.
✓
Counterbalance Design: The Z-axis adopts a counterbalance system to ensure consistent positioning accuracy and excellent cutting rigidity throughout the full stroke range.
✓
Full Sheet Metal Machining: All sheet metal mounting surfaces are fully machined, ensuring precise alignment during assembly and simplifying maintenance procedures.
✓
Dedicated Z-Axis Guard Design: The Z-axis protective cover features a specially designed contact surface that prevents the cover from scratching or damaging the guideways during operation.
✓
True Coolant Separation: The genuine coolant-chip separation structure keeps the machine environment clean, improves coolant reuse efficiency, and enhances overall environmental performance.

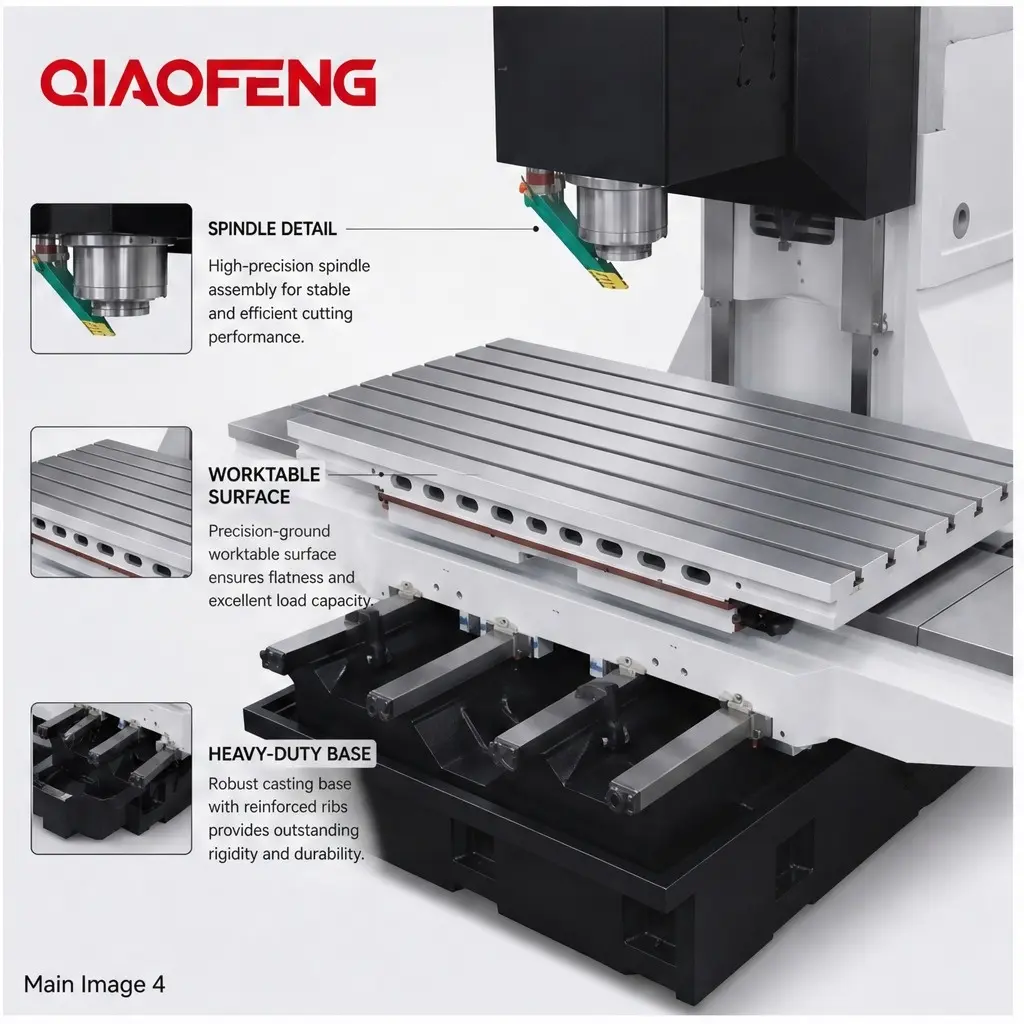

BT40 Spindle Head
Taiwan-imported P4-grade bearings, constant-temperature assembly, high-speed dynamic balanced for smooth operation up to 8,000 rpm.
C3 Precision Ballscrew
Imported C3-grade ballscrew with double-nut preloading and tail-end pre-tensioning for zero backlash and long-term accuracy.
Precision Worktable
1,300×600mm working surface with standard T-slots (18T×5P×100), supporting up to 800kg workpiece load for heavy-duty applications.
24-Tool Disc ATC
Disc-type automatic tool changer with 24-tool capacity. Fast tool change cycle supports continuous multi-operation machining without interruption.
