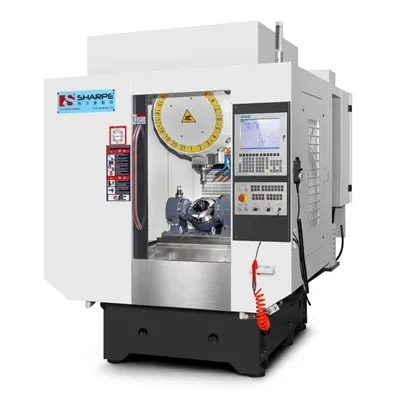

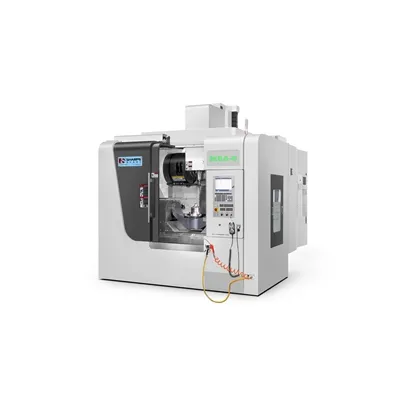

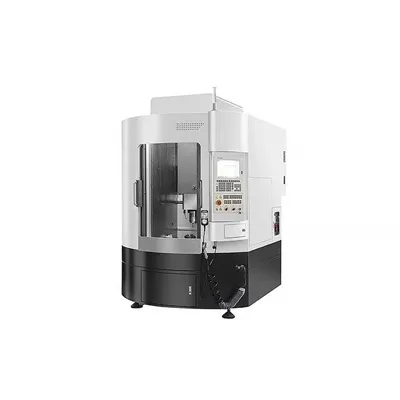

The Z300 is a high-rigidity 5-axis machining center for accurate multi-axis machining of structural and prismatic parts in a single setup.
Technical specifications
| Item | Unit | Spec | |
|---|---|---|---|
| Worktable | Max. machining dia. | mm | Φ390 |
| Swing diameter | mm | Ф400 | |
| Faceplate diameter | mm | 300 | |
| Workpiece load | KG | Vertical: 60 kg/Horizontal: 70 kg | |
| Spindle nose to table (A at 0°) | mm | 170-720 | |
| Travel Range | Machining Range | mm | 500*500*400 |
| Rotary axis C | deg | 0-360 | |
| Swing axis A | deg | ±110 | |
| Spindle nose to 5-axis faceplate | mm | 120-520 | |
| Spindle center to rotary-table center (axis 90°) | mm | (200)-220 | |
| Bed | Spindle | Spindle | Spindle |
| Direct-drive mechanical spindle | BT30 | ||
| Speed range | r/min | 0-20000 | |
| Screw / guideway | Screw / guideway | Screw / guideway | |
| Roller-screw dia. / pitch | mm | X/Y: 30 , Z:35 | |
| Guideway width | mm | X,Y,Z:C3 grade3216 | |
| Tool Magazine | Tool Magazine | Tool Magazine | |
| Magazine capacity (arm-type) | T | 21/30 | |
| Max. tool dia. (adjacent tool/empty) | mm | 75/150 | |
| Max. tool diameter | mm | 80 | |
| Tool-to-Tool Time | sec | 1.2 | |
| Electrical | Spindle Power | KW | 5.5 kW/24000 rpm |
| X/Y-axis motor | KW | X/Y absolute 1.8 kW | |
| Z-axis motor (braked) | KW | Z absolute 2.9 kW braked motor | |
| clamping system | ACrotary table | DD (direct-drive) | HoZhuangDZDC300 |
| C-axis | Pneumatic brake | ||
| A-axis | Pneumatic brake | ||
| Feed rate / rapid traverse | X/Y/Z rapid traverse rate | mm/min | 30000 |
| Rotary axis C | rpm | 200 | |
| Swing axis A | rpm | 250 | |
| Positioning Accuracy | X/Y/Z axis | mm | ±0.005/300 |
| Rotary axis C | ‘’ | ±10(20) | |
| Swing axis A | ‘’ | ±10(20) | |
| Repeatability | X/Y/Z axis | mm | ±0.005 |
| Rotary axis C | ‘’ | ±2(4) | |
| Swing axis A | ‘’ | ±2(4) | |
| Others | Working voltage & frequency | V/Hz | 380/50 |
| Input power | KW | 16 | |
| Control voltage | V | DC24 | |
| Working air pressure | bar | 6 | |
| Machine Weight | kg | 3500 | |
| Machine size (L×W×H) | mm | 1900x2400x2600 |
Equipment
Standard equipment
- Bed — Cast Iron — Resin-sand casting (HT250)
- Bed — Lubrication Circuit — Automatic (HovalAuto lubrication)
- Bed — Ball Screw — HIWIN (Taiwan)Ball screw (X,Y,Z:C3 grade3216)
- Bed — Linear Guideway — HIWIN (Taiwan)Ball guideway (X/Y: 30 , Z:35)
- Bed — Spindle — Dejiu (Taiwan)直联Spindle (BT30-20000rpm)
- Electrical — Feed-motor type — HNC (X/Y absolute 1.8 kW)
- Electrical — Feed-motor type — HNC (Z absolute 2.9 kW braked motor)
- Electrical — Spindle motor — HNC (5.5 kW/24000 rpm)
- System — CNC: HNC (Huazhong) (HNC-818D-12)
- Tool Change — Pneumatic tool changer — SFG arm-typeArm-type magazine (BT30 30 toolsArm-type magazine)
- Appearance — Sheet-metal Enclosure — Half enclosure (Ivory + dark grey)
- Lubrication — Electric oiler — RGB electric oiler (Electric oiler)
- Lighting — Linear work lamp (LED)
- rotary table — (HoZhuangDZDC300)
- Service — Freight — in-province
- Service — Packing — Simple packing
- Service — Warranty — 1 year
- Service — Training — on-site
Optional equipment
- Accessories — Tool holders & collets — BT30-ER32-70L (5 pcs each)
- Accessories — Tool kit (1 pcs)
- Accessories — Clamp plates (1 set)
- Accessories — Tool rack, wash gun, air gun (1 pcs each)
- Accessories — Manual (1 set)
About this model
This 5-Axis Machining Center is manufactured by our partner factory in Dongguan, China, and supplied direct by CENNETIC with factory-direct pricing, a standard warranty and remote setup support. Specifications are representative and can be confirmed against your machining requirements before order.
