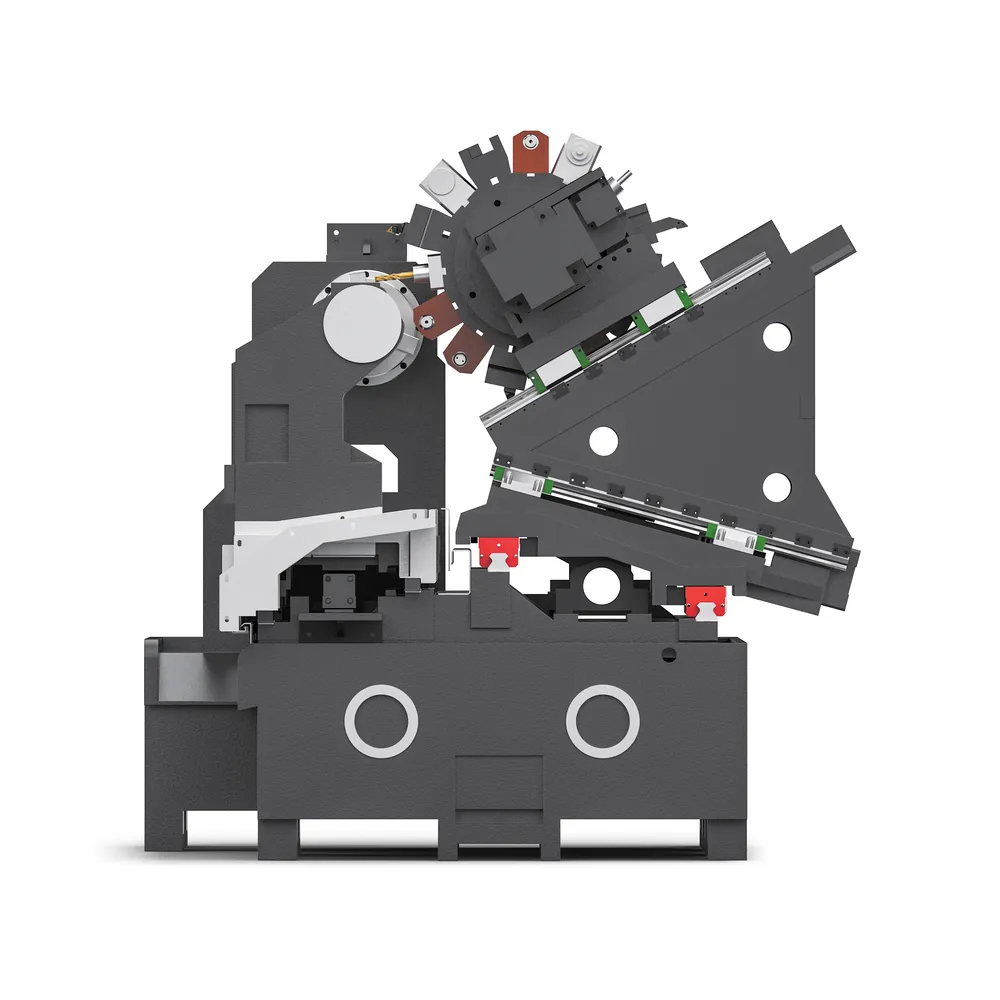

The CENNETIC 52iY is a reverse-interpolation turn-mill machining centre that produces a virtual Y-axis through two coordinated X-axes instead of a physical Y slide. Removing the Y-axis overhang shortens the cutting-force path and lowers the centre of gravity, giving a more rigid, more accurate platform for heavy cutting of titanium, superalloys and hardened steel (up to HRC 58–62) in a single chucking.
Technical specifications
| Item | Unit | Spec | |
|---|---|---|---|
| Working range | Max. swing over bed | mm | φ760 |
| Max. swing over carriage | mm | φ350 | |
| Max. machining dia. (disc / shaft) | mm | φ400 / φ350 | |
| Max. turning length | mm | 500 | |
| Limit stroke | X1-axis | mm | 300 |
| X2-axis | mm | 180 | |
| Virtual Y-axis | mm | ±50 | |
| Z-axis | mm | 530 | |
| R-axis (tailstock) | mm | 500 | |
| Feed | X1/X2 ball screw | — | 3210-C3 |
| X1/X2 motor torque | N·m | ≥15 | |
| Z ball screw | — | 3210-C3 | |
| Z motor torque | N·m | ≥22 | |

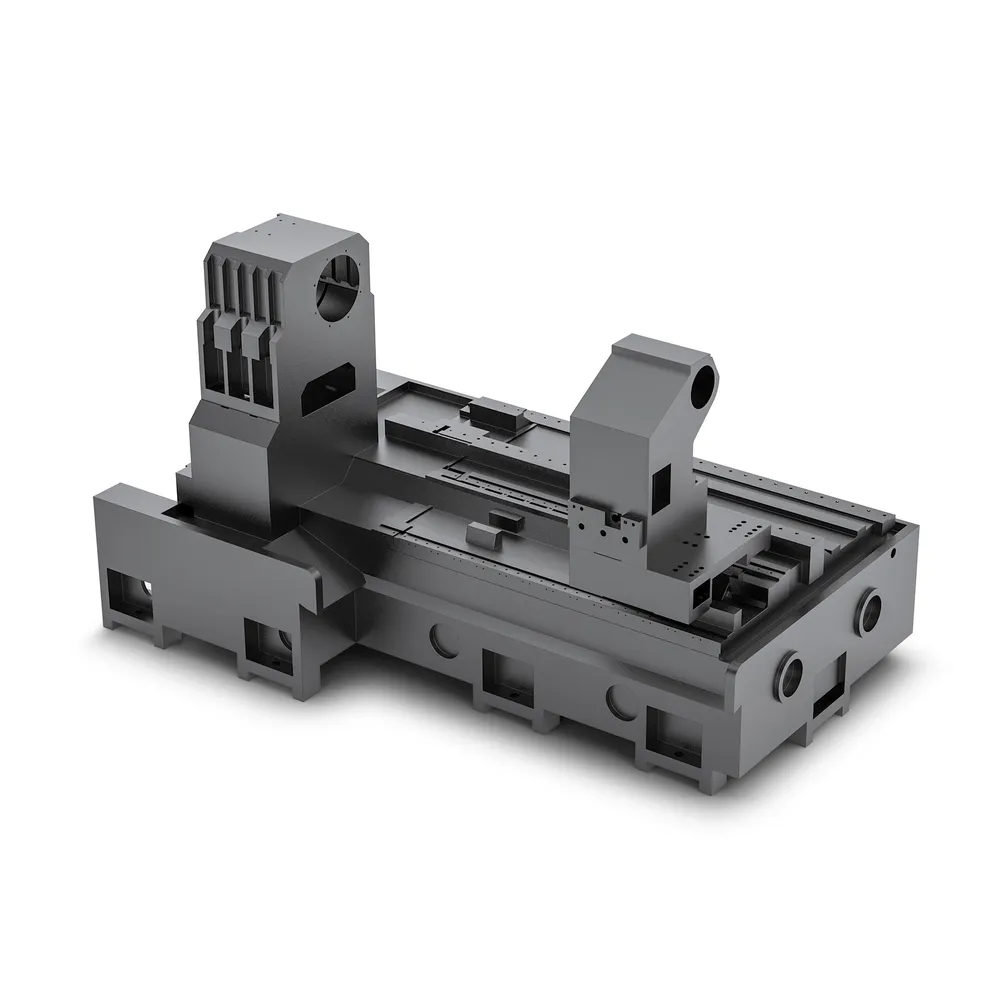

| Bed | Bed & inclination | — | 30° double-step integral bed |
| Guideway span | mm | 511 | |

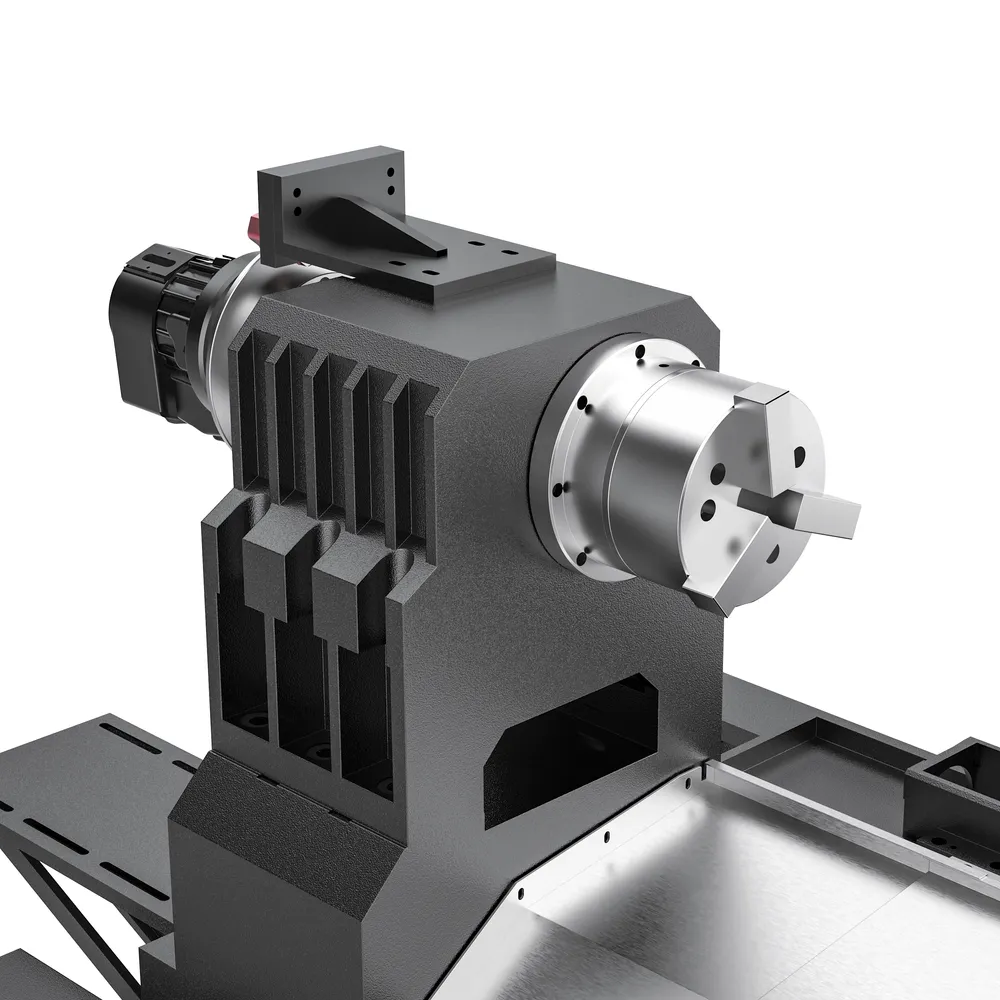

| Spindle unit | Max. speed | rpm | 4500 / 3000 |
| Through-hole dia. | mm | φ62 / φ79 | |
| Spindle nose | — | A2-6 | |
| Inner taper | — | 1:20 | |
| Spindle motor power | kW | 15 | |
| Hydraulic chuck / collet | — | 8″ / 10″ | |

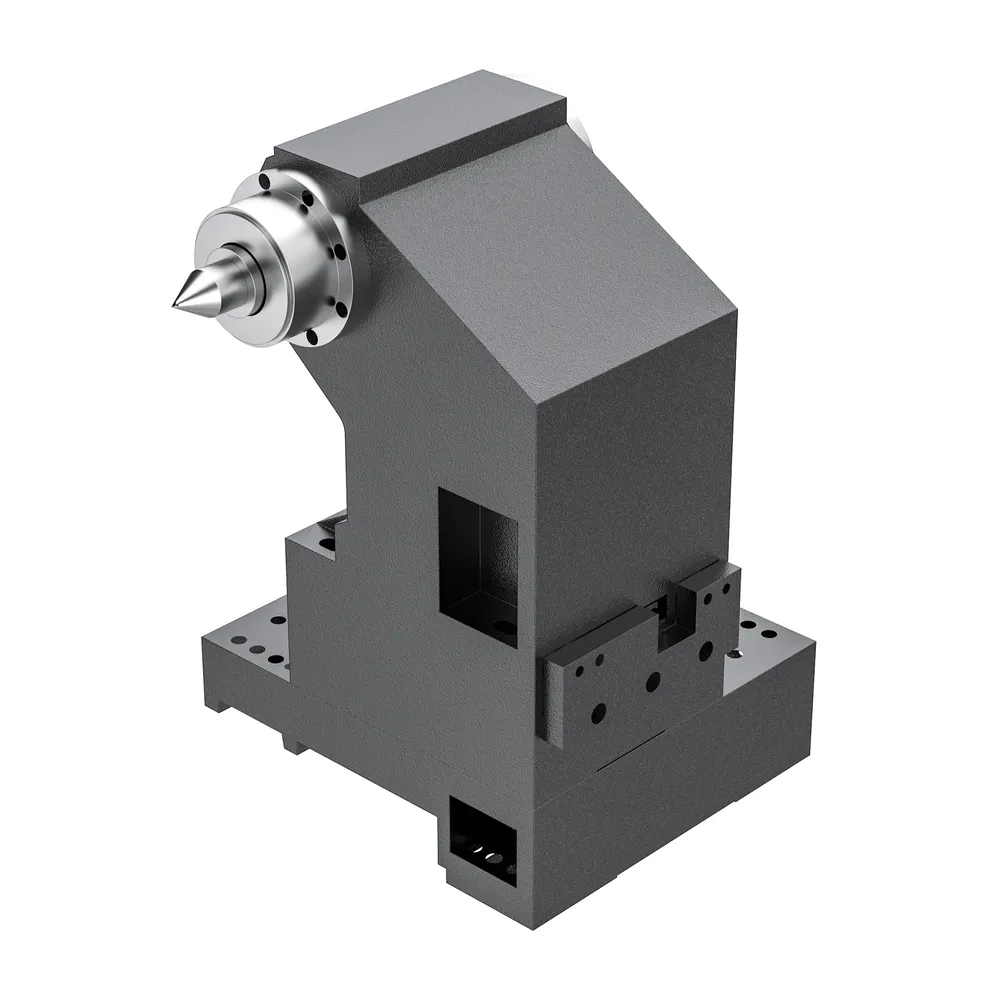

| Tailstock | Quill diameter | mm | φ120 |
| Travel | mm | 500 | |
| Taper | — | MT5 | |
| Accuracy | Positioning (X) | mm | ±0.005 |
| Positioning (Z) | mm | ±0.005 | |
| Repeatability (X) | mm | ±0.003 | |
| Repeatability (Z) | mm | ±0.003 | |
| Other | Machine weight (bare) | kg | 4500 |
| Dimensions (L×W×H) | mm | 3255 × 2160 × 1945 |
Equipment
Standard equipment
- System — CNC: SYNTEC 22TB
- System — Open bus servo communication — Mechatrolink-III / EtherCAT
- System — High-speed spindle orientation
- System — Optimised drill / tap retract (shortened G00)
Optional equipment
- Parts receiver
- Chip conveyor
- 90° live tool holder (C-axis)
- Automatic bar feeder
- 30 kg high-pressure coolant pump
- Anti-collision system
- Lathe tool setter
About this model
This Turn-Mill Machining Center is manufactured by our partner factory in Dongguan, China, and supplied direct by CENNETIC with factory-direct pricing, a standard warranty and remote setup support. Specifications are representative and can be confirmed against your machining requirements before order.
