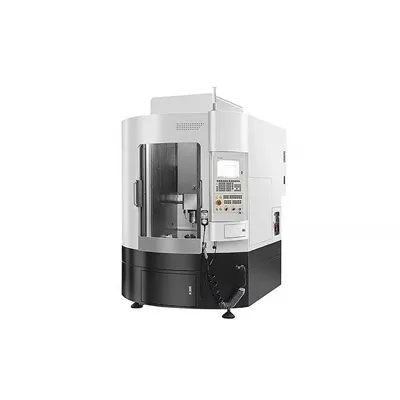

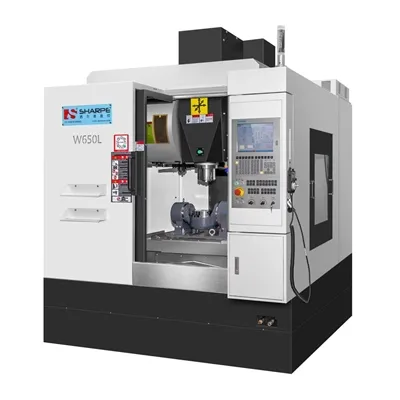

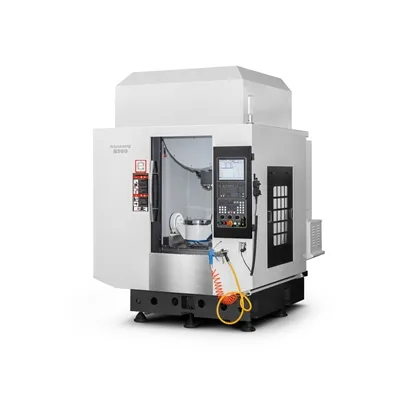

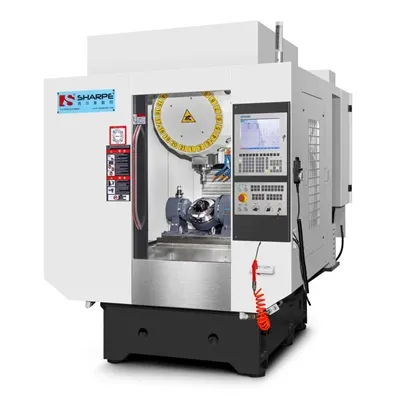

The M5-5 is a high-rigidity 5-axis machining center that adds continuous rotary axes to a vertical machining platform, delivering complex-contour capability without leaving the machine.
Technical specifications
| Item | Unit | Spec | |
|---|---|---|---|
| Worktable | Max. workpiece swing dia. | mm | Ф550 |
| Table (diameter) | mm | Ф400 | |
| Load capacity | KG | Tilt: 200 Horizontal260 | |
| Spindle nose to table (A at 0°) | mm | 170-720 | |
| Travel Range | Machining Range | mm | 650*400*500 |
| Table travel – X-axis | mm | 1000 | |
| Saddle travel – Y-axis | mm | 520 | |
| Headstock travel – Z-axis | 600 | ||
| Spindle center to column guideway | 582 | ||
| Spindle center to faceplate (A at 90°) | 273 | ||
| Spindle center to faceplate (A at −90°) | deg | 358 | |
| Spindle nose to faceplate | deg | 562 | |
| Spindle | Spindle drive type | - | Built-in Motor Spindle |
| Spindle | Taper bore (7:24) | HSK-A63 | |
| Speed range | r/min | 0-18000 | |
| Rated output torque | N.m | 39.6 | |
| Spindle rated power | kw | 15 kW(efficiency88%) | |
| Screw / guideway | Roller-screw dia. / pitch | mm | X,Y,Z: 40/10 4040/1040mm/12mm |
| Guideway width | XYZ:45 roller | ||
| Tool Magazine | Tool-holder spec | HSKA63 | |
| Magazine capacity (chain-type) | T | 48/32 | |
| Max. tool dia. (adjacent tool/empty) | mm | 75/150 | |
| Max. tool length | mm | 250 | |
| Tool-to-tool change time | s | 2.9 | |
| Electrical | Spindle Motor Power | KW | 15 kW(efficiency88% |
| X-axis motor | KW | 3.0 (98% efficiency) | |
| Y-axis motor | KW | 3.0 (98% efficiency) | |
| Z-axis motor (braked) | KW | 3.0 (98% efficiency) | |
| ACrotary table | DD (direct-drive) | RDD (direct-drive)S400 | |
| Speed | X/Y/Z rapid traverse rate | mm/min | 30000 |
| Rotary axis C | mm/min | 20000 | |
| Swing axis A | mm/min | 10000 | |
| Accuracy | Positioning accuracy (X/Y/Z) | mm | |
| A-axis positioning accuracy | ·· | ±5 | |
| C-axis positioning accuracy | `` | ±5 | |
| Repeatability (X/Y/Z) | mm | ±0.005 | |
| Others | CNC System | Lynuc N3E | |
| Air Pressure | 6 kgf/cm² | ||
| Dimensions (L×W×H) | mm | 2850*2900*2600 | |
| Machine Weight | kg | approx. 7800 |
Equipment
Standard equipment
- Bed — Cast Iron — Resin-sand casting (HT300)
- Bed — Lubrication Circuit — Automatic (Auto lubrication)
- Bed — Ball Screw — HIWIN (Taiwan)Ball Screw (Ball screw4012)
- Bed — Linear Guideway — INA (Germany)Linear guideway (XYZ: RG45(roller))
- Bed — Spindle — SufengHigh-speed motor spindle (HSKA63)
- Bed — ACrotary table — Haomai (RDD (direct-drive)S400)
- Electrical — Feed-motor type — Tuko (XYZ: 3.0 kW)
- Electrical — Spindle — SufengHigh-speed motor spindle (15 kW)
- Appearance — Sheet-metal Enclosure — Full enclosure (White + black)
- Lubrication — Electric oiler — RGB electric oiler (Electric oiler)
- Lighting — Linear work lamp
- Spindle oil cooling — Spindle oil cooling — Chuanguan (74/min)
- Accessories — Tool holders / collets — HSKA63 (6 pcs each)
- Accessories — Tool kit (1 set)
- Accessories — Tool-holder stand — HSKA63 (1 pcs)
- Service — Freight — in/out province (in/out province)
- Service — Training — on-site (On-site)
- Service — Warranty — 1 year (1 yr)
Optional equipment
- System — CNC: RNC (Shanghai) (Lynuc N3E)
- Tool Change — Pneumatic tool changer — Changzhou FangguanServo magazine (Chain-type48 tools)
- Accessories — Tool setter (1 pcs)
About this model
This 5-Axis Machining Center is manufactured by our partner factory in Dongguan, China, and supplied direct by CENNETIC with factory-direct pricing, a standard warranty and remote setup support. Specifications are representative and can be confirmed against your machining requirements before order.
