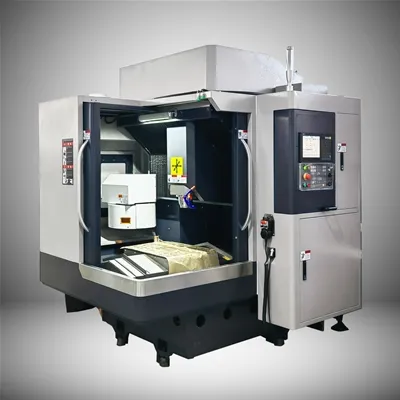

The T850 is a high-speed drilling and tapping center for fast hole-making and light milling on aluminum and small steel parts in high-volume production.
Technical specifications
| Item | Unit | Spec | |
|---|---|---|---|
| Worktable Size | Worktable Size | mm | 1000*500 |
| travel | Left–right (X) | mm | 800 |
| Front–back (Y) | mm | 500 | |
| Up–down (Z) | mm | 420 | |
| Table T-slots – size | Table T-slots – size | mm | 5-18-100 |
| Max. load | Max. load | kg | 300 |
| Spindle nose to table | Spindle nose to table | mm | 150-570 |
| Spindle center to machine front | Spindle center to machine front | mm | 420 |
| Spindle Speed | Spindle Speed | rpm | 50-20000 |
| Spindle taper | Spindle taper | # | BT-30 |
| Spindle Power | Spindle Power | kw | 7.5 |
| X-axis rapid rate | X-axis rapid rate | mm/min | 48000 |
| Y-axis rapid rate | Y-axis rapid rate | mm/min | 48000 |
| Z-axis rapid rate | Z-axis rapid rate | mm/min | 48000 |
| cutting rate | cutting rate | mm/min | 1-20000 |
| Axis motor power (X/Y/Z) | Axis motor power (X/Y/Z) | kw | 2.4/2.4/3.9 |
| Screw spec (X/Y/Z) | Screw spec (X/Y/Z) | mm | 3616/P3 |
| Linear guideway(X/Y/Z) | Linear guideway(X/Y/Z) | PMI-MSA30(X/Y) 35mm(Z) | |
| Magazine type | Magazine type | SFG arm-type21 toolsarm-type | |
| Control System | Control System | Syntec22MA | |
| Tool weight | Tool weight | Kg | 4 |
| Tool length | Tool length | mm | 170 |
| Max. tool dia. (full/adjacent empty) | Max. tool dia. (full/adjacent empty) | mm | 65/75 |
| Coolant tank capacity | Coolant tank capacity | L | 100 |
| Air pressure requirement | Air pressure requirement | Kg/cm² | 0.6MPA |
| Total power consumption | Total power consumption | kw | 14 |
| Positioning Accuracy | Positioning Accuracy | mm | ±0.01/300 |
| Repeatability | Repeatability | mm | ±0.01 |
| max. load | max. load | Kg | 230 |
| Machine weight (approx.) | Machine weight (approx.) | Kg | 3800 |
| Dimensions (L×W×H) | Dimensions (L×W×H) | mm | 2500*2550*2700 |
About this model
This Drilling & Tapping Center is manufactured by our partner factory in Dongguan, China, and supplied direct by CENNETIC with factory-direct pricing, a standard warranty and remote setup support. Specifications are representative and can be confirmed against your machining requirements before order.
